Brake Rivets
With proven engineering expertise, National Rivet is a trusted partner for automotive, heavy-duty truck, bus, and other vehicle manufacturers.
Brake Lining Rivets
Disc Brake Pad Rivets

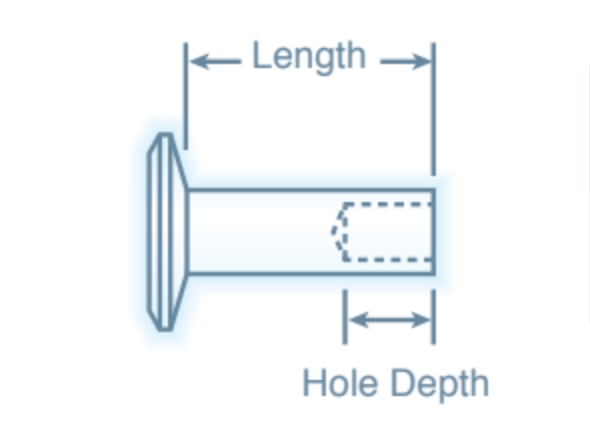

Brake Lining Rivets
These rivets have flat chamfered countersunk heads and can be supplied from brass or steel with zinc and chromate plating.
Product Specs
Length in 1/16"s
Body Diameter
Head Diameter
Head Thickness
Hole Depth
Incl. Angle Under Head
4

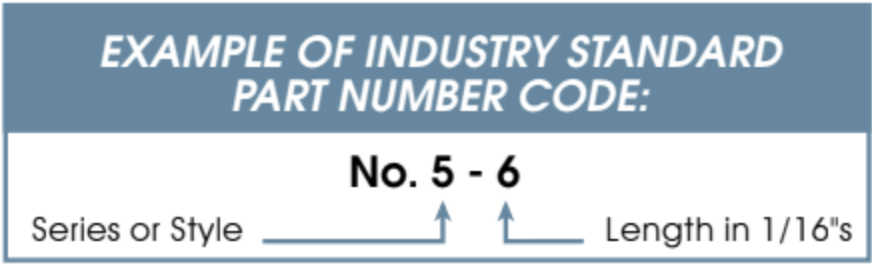

To determine length see example above
9/64" 5/16" (.141/.146)
5/16" (.291/.301)
.038 /.044
.125
150 2
5
To determine length see example above
5 9/64" (.141/.146)
3/8" (.354/.364)
.048 /.054
.125
150 2
7
To determine length see example above
7 3/16" (.182/.188)
3/8" (.354/.364)
.044 /.052
.187
150 2
8
To determine length see example above
8 3/16" (.182/.188)
1/2" (.463/.473)
.058 /.066
.187
150 2
20
To determine length see example above
20 .195"(.463/.476)
1/2" (.463/.476)
.058 /.066
.218
150 2
10
To determine length see example above
10 1/4" (.244/.250)
1/2" (.463/.473)
.052 /.060
.250
150 2
Disc Brake Pad Rivets
These rivets have flat undercut heads and can be supplied from brass or steel with zinc and chromate plating.
Product Specs
PLEASE NOTE: Special head diameters and head markings are available on request. Intermediate lengths not listed are also available.
Length in 1/16"s
Body Diameter
Head Diameter
Head Thickness
Hole Depth
22
To determine length see example above
9/64" (.141/.145)
19/64" (.291/.301)
.036/.040
.187
24
To determine length see example above
3/16" (.182/.188)
23/64" (.355/.365)
.038/.042
.141
23
To determine length see example above
.210" (.208/.212)
23/64" (.355/.365)
.036/.042
.157
