Pneumatic Single Head
Features
These models are well-suited for setting a rivet near a tall vertical side wall on the work piece and can operate as close as 1/4″ to the vertical angle and surface.
Each of the models in this category is available in both left-handed and right- handed versions. The 2410 series and 2610 series have side clearance on the right of the head, while the 2420 and 2620 series have clearance to the left.
These machines are designed to rivet fragile parts, brittle materials and parts that may vary in thickness. Setting pressures may be carefully controlled.
A heavy duty rocker arm is directly connected to the air cylinder for precision load control. Frame and base are of welded steel construction for minimum flexibility and maximum durability providing years of service.
Advancing jaw carriers and quick change hoppers are other features of these National machines.
These setters have a cycle time of about one second.
Each model can be customized to your specific needs and requirements.
Model 2410BA
Model 2410FA
Model 2420BA
Model 2420FA
Model 2610BA / 2620BA
Model 2610FA / Model 2620FA
Model 2410BA
Product Specs
.125" dia. x .750" length, max.
Specials to 1.250" length, max.
Model 2410FA
Product Specs
.125" dia. x .750" length, max.
Specials to 1.250" length, max.
Model 2420BA
Product Specs
.125" dia. x .750" length, max.
Specials to 1.250" length, max.
Model 2420FA
Product Specs
.125" dia. x .750" length, max.
Specials to 1.250" length, max.
Model 2610BA / 2620BA
Product Specs

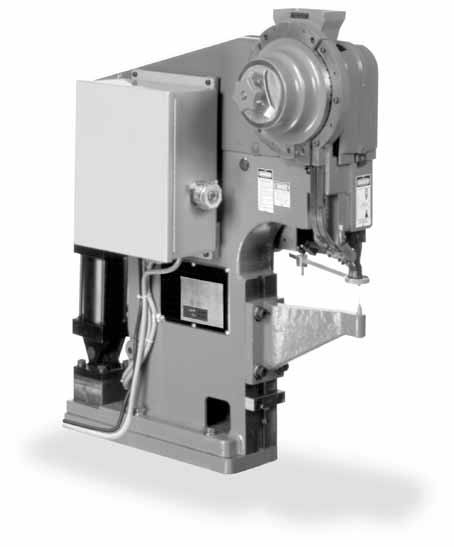

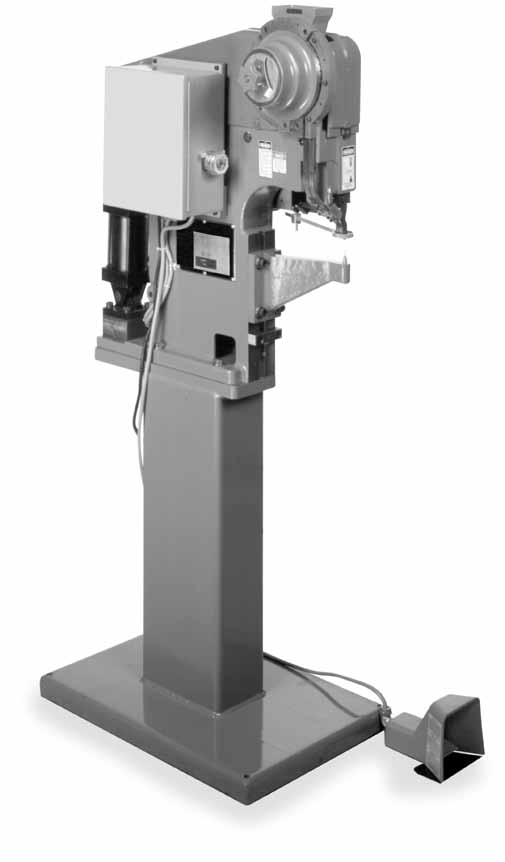

2620 is shown, 2610 is tooled on the left side.
Model 2610FA / 2620FA
Product Specs
2620 is shown, 2610 is tooled on the left side.
Rivet Tools & Accessories
Investing in quality riveting accessories is a proven method for increasing efficiency. In fact, many people blame problems on their rivets or rivet setters, when the real culprit is worn or inadequate tools and accessories. As an integrated supplier, our engineers can quickly spot system deficiencies and recommend a new, more productive riveting solution.
