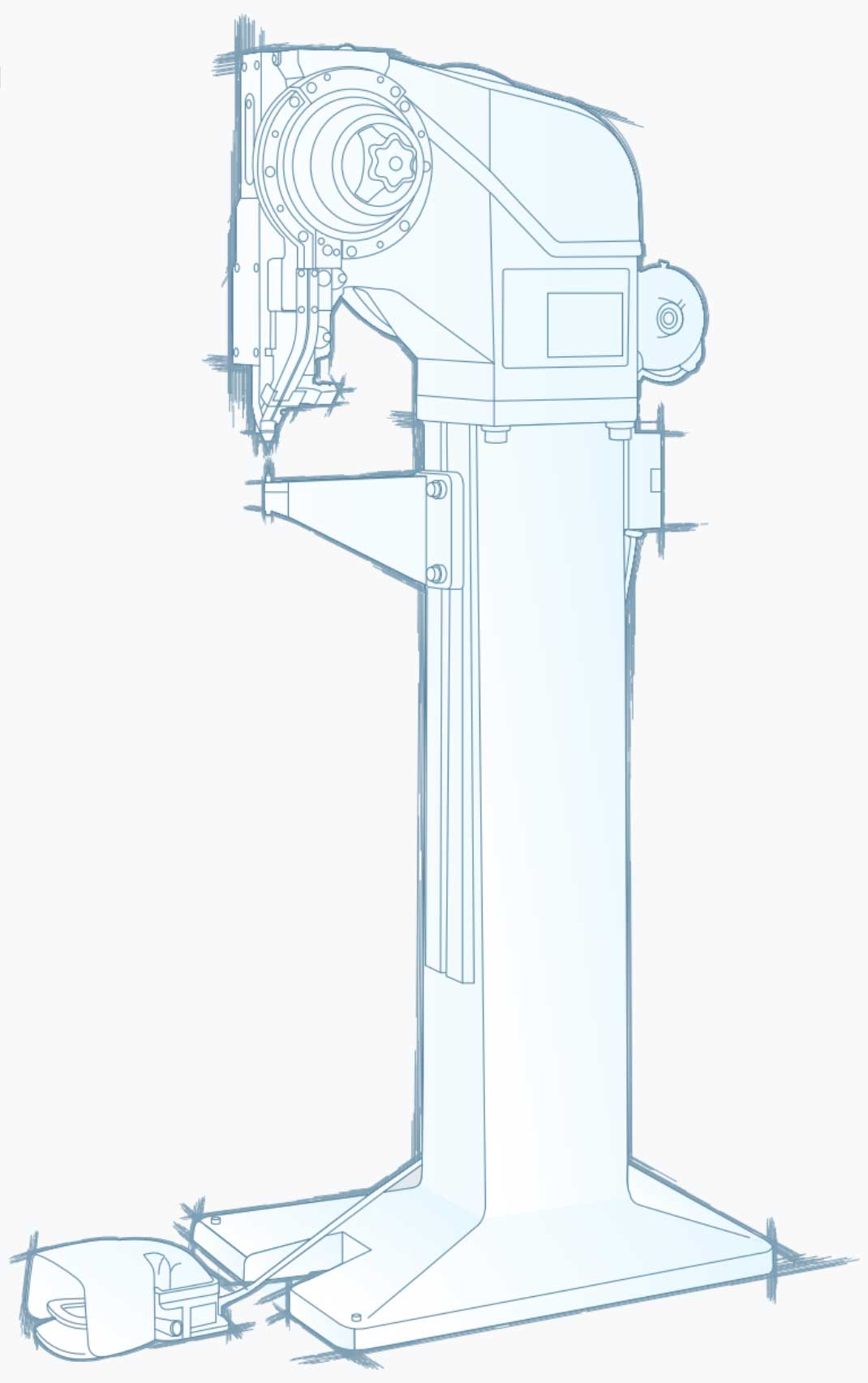

Electro-Mechanical Single Head
Features

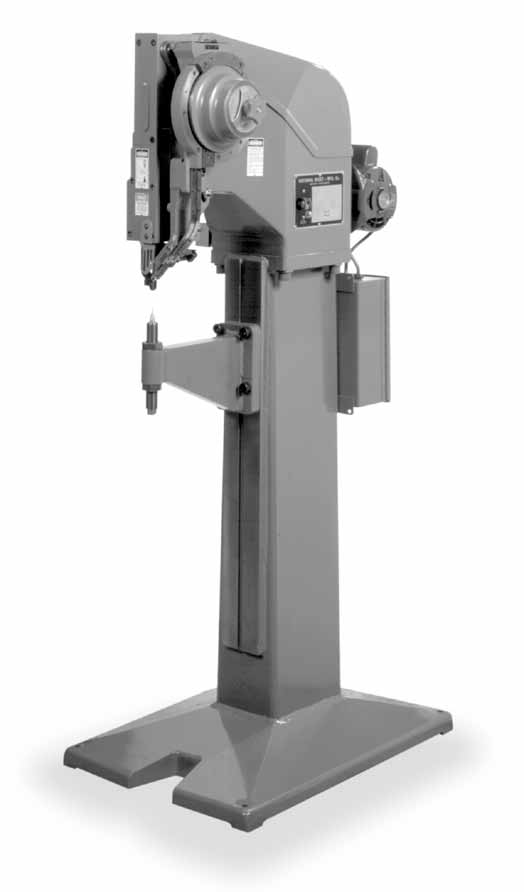

These models have an electric motor driven flywheel with a crankshaft and connecting rod powering a toggle link mechanism. With this type of drive, when the toggle links straighten out, full power is delivered to the rivet and a consistent riveted height is maintained. Riveting cycle time is 1/3 second.
Additional hopper assemblies can be furnished to allow one machine to set a variety of rivets within its capacity. Hopper assemblies may be changed easily in a few minutes.
Special anvil arms can be provided to meet the requirements of a wide range of riveting applications, allowing for exceptional versatility.
All models feature complete guarding for the highest degree of operator safety.
Like all National machines, these rugged models are made with steel weldments, making them the strongest and most durable rivet setters in their class.
With their long machine life and virtually no maintenance, these riveters give you high production for a modest investment and provide you better, lower cost service over a greater number of years. They profitably replace the outmoded units in your shop.

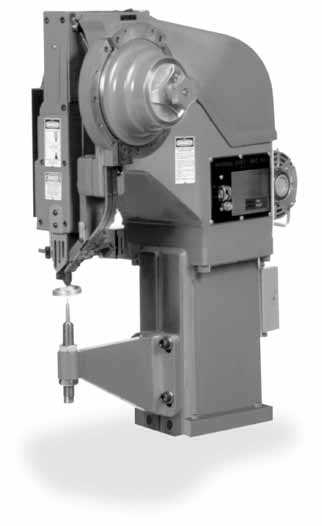

Some models are available in either floor or bench mount versions.
Each model can be customized to your specific needs and requirements.
Model 500
Model 500B
Model 600
Model 616
Model 800
Model 816
Model 1000
Model 1200
Model 500
Product Specs
60 cy., 1 ph., 115v Std.
Opt.: 220/440/480v, 3 ph., 60 cy.
*Pneumatic versions are also available
Model 500B
Product Specs
60 cy., 1 ph., 115v Std.
Opt.: 220/440/480v, 3 ph., 60 cy.
*Pneumatic versions are also available
Model 600
Product Specs
*10" Hopper: .188" x 1.375"
* Avail., extra charge
60 cy., 1 ph., 115v Std.
Opt.: 220/440/480v, 3 ph., 60 cy.
*Pneumatic versions are also available
Model 616
Product Specs
*10" Hopper: .188" x 1.375"
* Avail., extra charge
60 cy., 1 ph., 115v Std.
Opt.: 220/440/480v, 3 ph., 60 cy.
*Pneumatic versions are also available
Model 800
Product Specs
60 cy., 1 ph., 115v Std.
Opt.: 220/440/480v, 3 ph., 60 cy.
Model 816
Product Specs
60 cy., 1 ph., 115v Std.
Opt.: 220/440/480v, 3 ph., 60 cy.
Model 1000
Product Specs
60 cy., 1 ph., 115v
Opt.: 220/440/480v, 3 ph., 60 cy.
Model 1200
Product Specs
Special to .438" dia. x 2.5" long
60 cy., 1140 R.P.M. Std.
Opt.: 220v/440 v, 3 ph., 60 cy.
